API 6D Annex G

API 6D Annex G provides specific requirements that are not to be coated on valve end flange, weld end and pipe pup connectors, and shall be performed after all testing is completed.


API 6D Annex G
(normative)
External Coating for End Connectors

G.1  General

API 6D Annex G provides specific requirements that are not to be coated on valve end flange, weld end and pipe pup connectors, and shall be performed after all testing is completed.


G.2 Uncoated areas

Valves with raised-face end connectors shall have the area identified uncoated (see Figure G.1).

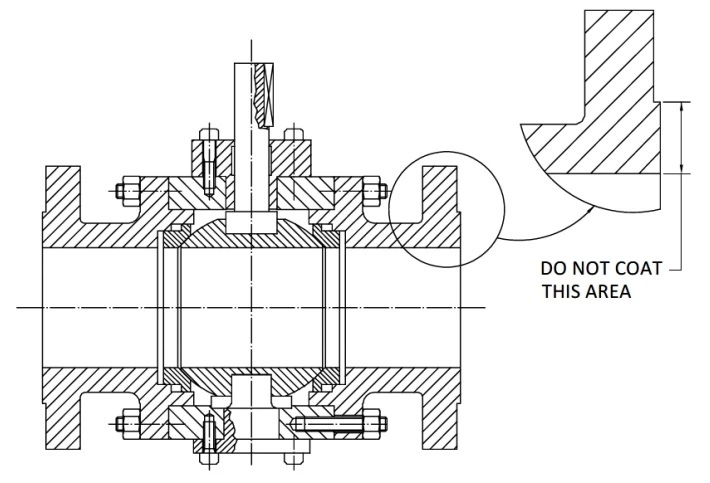

Figure 1 valve with raised face

Figure G.1 — Valve with Raised Face


Valves with ring type joint or raised-face ring type joint end connectors shall have the area identified uncoated (see Figure G.2).

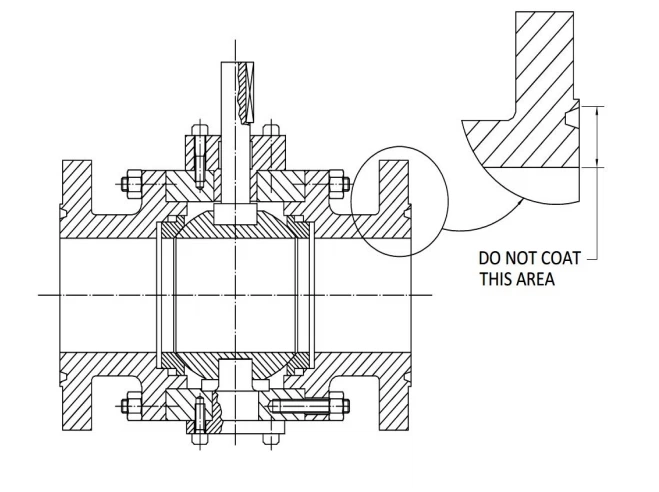

Figure G .2—Valve with Ring Type Joint or Raised Face Ring Type Joint
Figure G .2—Valve with Ring Type Joint or Raised Face Ring Type Joint


Valves with weld end connectors shall have the area identified uncoated (see Figure G.3).

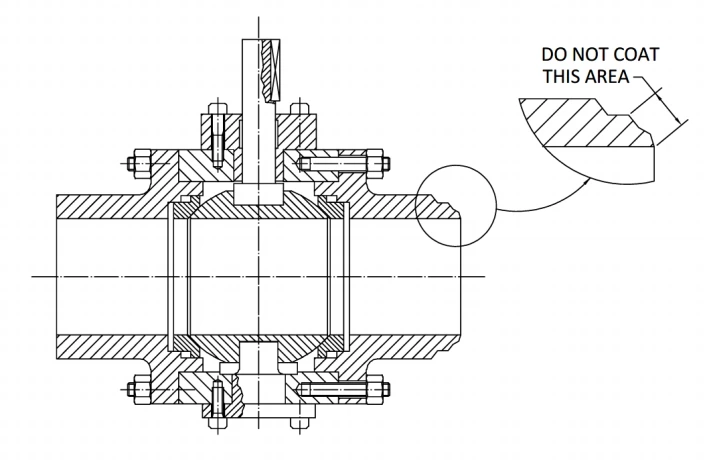

Figure G.3—Valve with Weld End
Figure G.3—Valve with Weld End


Valves with pup pipe welded to end connectors shall have the area identified uncoated (see Figure G.4)

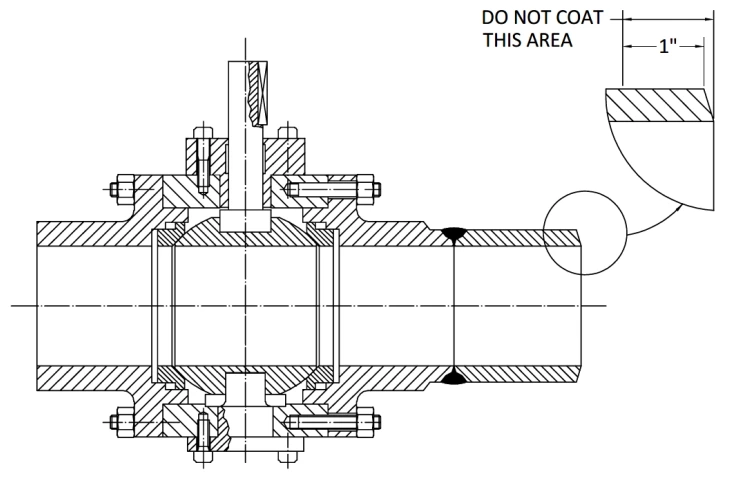

Figure G.4—Valve with Pipe Pup Weld Ends
Figure G.4—Valve with Pipe Pup Weld Ends
