API 603: Corrosion-resistant, Bolted Bonnet Gate Valves— Flanged and Butt-welding Ends

API 603 standard specifies the requirements for corrosion-resistant bolted bonnet gate valves meeting the requirements of Standard Class, ASME B16.34 and having full port openings for use in process piping applications.

API 603 standard sets forth the requirements for the following gate valve features:

— bolted bonnet;

— outside screw and yoke;

— rising stems;

— non-rising handwheels;

— single or double gate;

— wedge or parallel sealing;

— metallic seating surfaces;

— flanged or butt-welding ends.

Corresponding to nominal pipe size DN:

— 15; 20; 25; 32; 40; 50; 65; 80; 100; 150; 200; 250; 300; 350; 400; 450; 500; 600.

It covers valves of the nominal pipe size NPS:

—1 / 2 ; 3 / 4 ; 1; 1 1 / 4 ; 1 1 / 2 ; 2; 2 1 / 2 ; 3; 4; 6; 8; 10; 12; 14; 16; 18; 20; 24.

Applies to pressure class designations:

— 150; 300; 600.

API 603 Annex B illustrates a bolted bonnet gate valve for the purpose of establishing standard nomenclature for valve parts.

The dimensions in metric (SI) units are standard; customary units are shown for reference.

Annex B

(informative)

Identification of Valve Terms

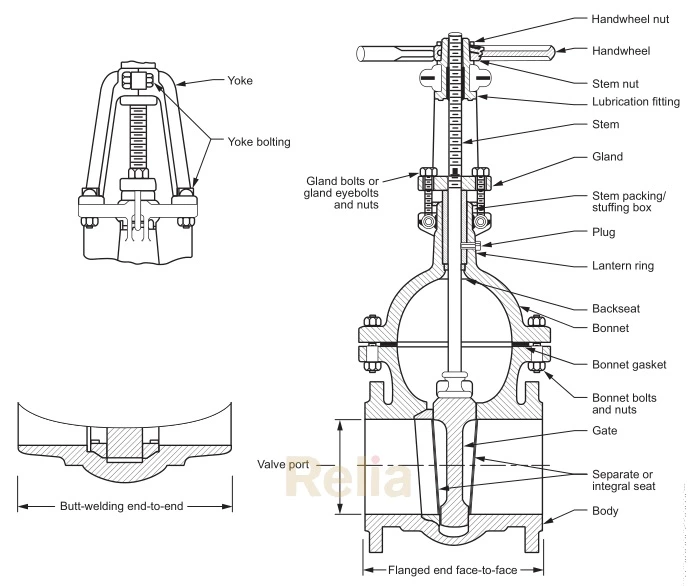

Figure B-1—Valve Nomenclature
